Bitmasks

In this lesson we will learn how to store an entire set inside a single number - bitmasks!

What is a bitmask?

A bitmask is an ordinary integer that we read one bit at a time. Bit i answers one yes/no question: is element i inside the set? (Think of it as a lightweight version of vector<bool>)

Think of a row of light switches, one per element. The switch is up if the element is in, down if it is out. The whole row read from right to left is a binary number, and that number is the mask.

With numbers there are 16 masks, from 0000 (all down) to 1111 (all up). The set of all four is the number 15, and the empty set is the number 0.

Nothing here is new. We already know how to read and write single bits from the Bitwise Operations lesson - a bitmask is just a new way of looking at a number we already knew how to manipulate.

The operations

Everything we ever do to a mask comes down to these:

Here n is the number of elements, and it is small - more on that in a moment.

Every line is one or two machine instructions, which is the whole point of the structure. Adding an element to a set<int> costs O(log n), adding it to a mask costs nothing measurable.

Let's build a group and then read it back:

int main(){

    vector<string> names = {"Ana", "Marko", "Jovan", "Mila"};

    int mask = 0;

    mask |= (1<<0); //Ana joins
    mask |= (1<<2); //Jovan joins
    mask |= (1<<3); //Mila joins

    mask &= ~(1<<2); //Jovan changes his mind

    cout<<mask<<'\n';

    for(int i=0;i<4;i++){
        if((mask>>i)&1){
            cout<<names[i]<<" ";
        }
    }

    return 0;
}

Output:
9
Ana Mila

The group {Ana, Mila} is the number 9, because 9 is 1001 in binary. That number is now something we can put in an array, compare with ==, or pass around as an int.

Note:
__builtin_popcount and __builtin_ctz are gcc functions, and they only take an unsigned int. For a 64-bit mask they are called __builtin_popcountll and __builtin_ctzll.

Every subset with one loop

Here is the payoff that makes bitmasks worth learning.

Every subset of n elements is a mask, and every mask is a number between 0 and 2^n - 1. So looping over all subsets is just looping over all numbers in that range:

int main(){

    int n = 3;
    vector<int> a = {1, 2, 3};

    for(int mask=0;mask<(1<<n);mask++){

        cout<<"{ ";

        for(int i=0;i<n;i++){
            if((mask>>i)&1){
                cout<<a[i]<<" ";
            }
        }

        cout<<"}"<<'\n';
    }

    return 0;
}

Output:
{ }
{ 1 }
{ 2 }
{ 1 2 }
{ 3 }
{ 1 3 }
{ 2 3 }
{ 1 2 3 }

All eight subsets, with no recursion, no push_back, and nothing to undo on the way back up. The whole generator from the Recursion chapter collapsed into two for loops.

The order is different from the recursive version, because now the subsets come out sorted by their number. That is usually an advantage, and we will lean on it heavily in the next lesson.

Note:
1<<n is 2^n, so mask<(1<<n) reads as "for every one of the 2^n subsets". Writing pow(2,n) here is a mistake - pow returns a double, and comparing an int with a double in a loop condition is how people lose the last subset.

Sets as numbers

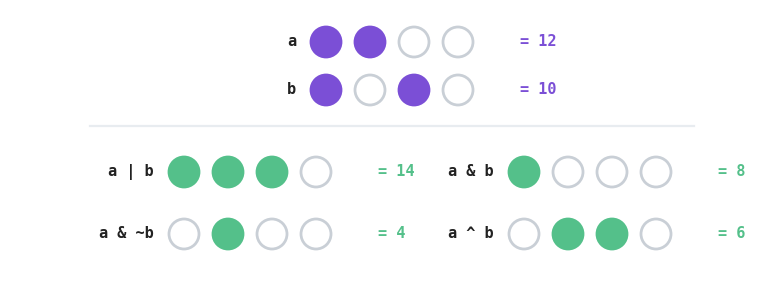

Because a mask is a set, the bitwise operators turn into set operators:

Let's check them:

int main(){

    int a = 12; //1100
    int b = 10; //1010

    cout<<(a | b)<<'\n';
    cout<<(a & b)<<'\n';
    cout<<(a & ~b)<<'\n';
    cout<<(a ^ b)<<'\n';

    return 0;
}

Output:
14
8
4
6

a is {2,3} and b is {1,3}. Their union is {1,2,3} which is 1110, or 14. Their intersection is {3} which is 1000, or 8. Checking whether one set contains another, which would be a loop over a vector, is now a single & and a single ==.

Important Traps:

The first is operator precedence. In c++, == binds tighter than &. So this looks right and is not:

int main(){

    int mask = 5; //0101

    if(mask & (1<<1) == 0){
        cout<<"element 1 is missing";
    }else{
        cout<<"element 1 is inside";
    }

    return 0;
}

Output: element 1 is inside

But 5 is 0101, and bit 1 is clearly 0. What the compiler read was mask & ((1<<1) == 0), which is mask & 0, which is 0, which is false - so we landed in the else.

The fix is to bracket the mask expression, or better, to always test a bit the same way:

if(((mask>>1)&1) == 0)

The second is the type of the 1. A shift is done in the type of its left operand, and a plain 1 is an int:

int main(){

    long long a = 1<<40;
    long long b = 1LL<<40;

    cout<<a<<'\n';
    cout<<b;

    return 0;
}

Output:
0
1099511627776

Assigning to a long long does not save us, because the shift already happened in 32 bits and threw everything away. Shifting an int by 40 is undefined behaviour, so the result is whatever the compiler feels like - here it simply produced 0.

The rule is short: the moment a mask can have more than 31 bits, every 1<<i becomes 1LL<<i. Turn compiler warnings on and gcc will point at this one for you.

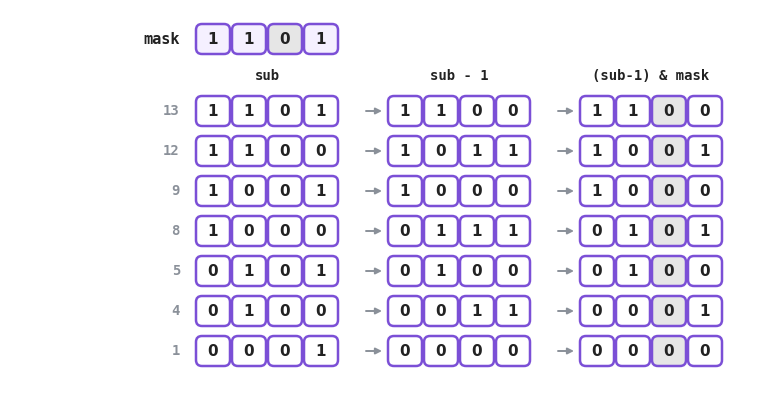

Walking the submasks

Sometimes we do not want every subset of the whole set, but every subset of one particular mask. Splitting a group into two teams, for example: pick a submask, and the rest of the mask is the other team.

There is a well known one-liner for it:

int main(){

    int mask = 13; //1101

    for(int sub=mask; sub>0; sub=(sub-1)&mask){
        cout<<sub<<" ";
    }

    return 0;
}

Output: 13 12 9 8 5 4 1

Subtracting one from sub turns its lowest set bit off and fills everything below it with ones. The & mask then wipes out the bits that were never allowed to be there in the first place, and what is left is the next smaller submask. Repeating that walks through all of them, from the mask itself down to 0.

Running this loop for every mask does not cost O(2^n * 2^n) as it first looks. A mask with k bits has 2^k submasks, and summing that over all masks gives O(3^n) - a big number, but a very different one.

Note:
Masks are very efficient, useful and easy to use(once you understand them). The tradeoff is that they can't be used very often. A long long bitmask can only store 64 elements!

In conclusion bitmasks are a must know technique that is both an optimization, and a building block for bitmask DP!
